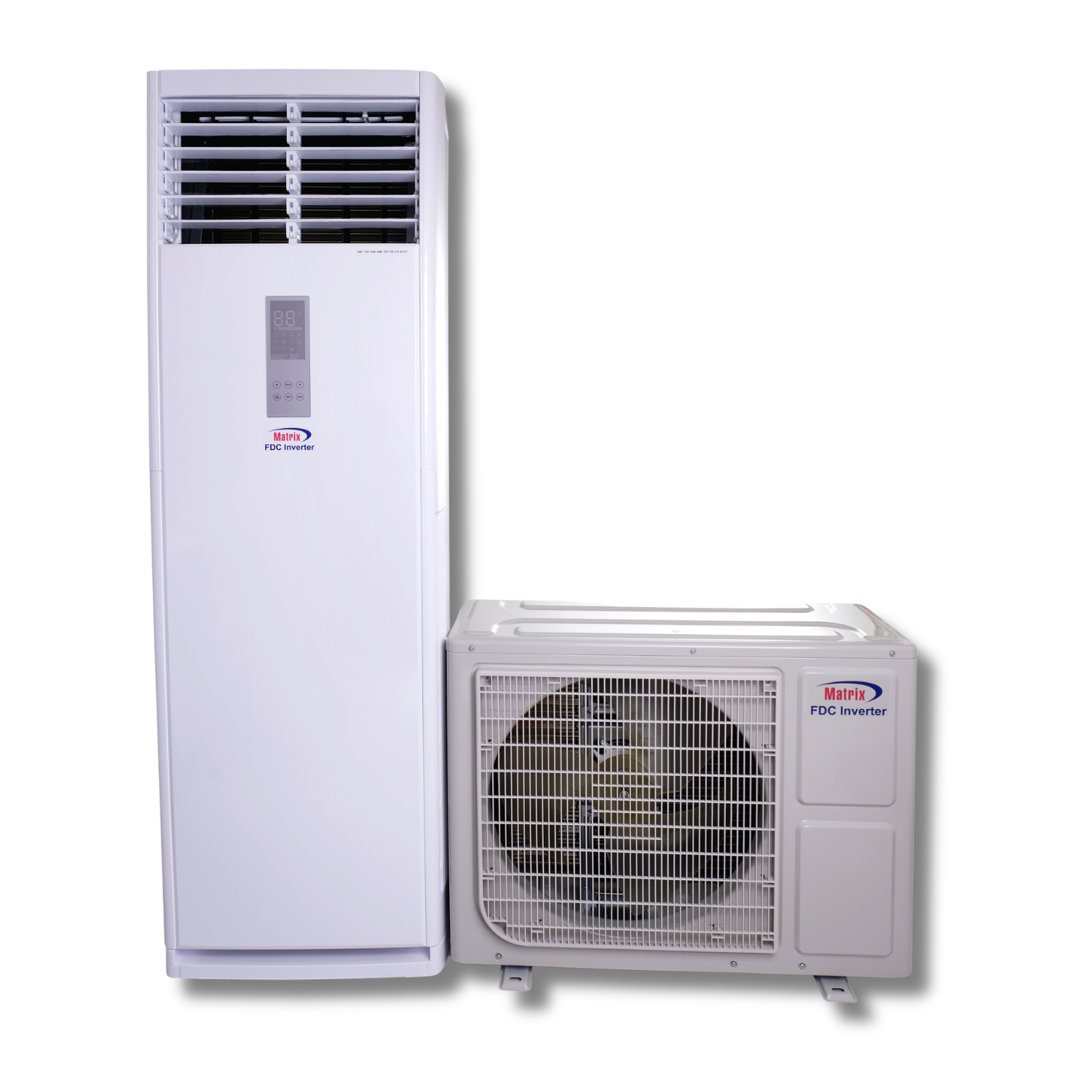

Floor Mounted / Floor STanding Type

Cooling Capacity: 38,000 BTU/h

Applicable Area: 48–70 m²

Power Supply: 220 - 230V / 60Hz / 1Ph

Rated Power: 4,200 W

Rated Current: 22.5 A

EER: 12.3 BTU/hW

Refrigerant: R32

Airflow (Hi/Mi/Lo): 1,851.6/0/1,611.1 m³/h

Noise Level (Lo): 48 dB(A)

Operating Temperature: 17–30°C

INSTALLATION

Liquid Pipe: Ø9.52 mm (⅜")

Gas Pipe: Ø15.9 mm (⅝")

Max. Pipe Length: 30 m

Max. Level Difference: 20 m

Cooling Capacity: 60,000 BTU/h

Applicable Area: 73–107 m²

Power Supply: 220 - 230V / 60Hz / 1Ph

Rated Power: 6,290 W

Rated Current: 20.5 A

EER: 10.6 BTU/hW

Refrigerant: R32

Airflow (Hi/Mi/Lo): 55.8 / 49.2 m³/h

Noise Level (Lo): 49.2 dB(A)

Operating Temperature: 17–30°C

INSTALLATION

Liquid Pipe: Ø9.52 mm (⅜")

Gas Pipe: Ø15.9 mm (⅝")

Max. Pipe Length: 50 m

Max. Level Difference: 30 m
